ENGIRO 260W-08058-SFR

First-class, ultra efficient, compact permanent magnet synchronous motor (PMSM). Rated from 48-200V DC, 44-84kW, 219-435Nm.

Lead times apply, volume pricing available

$6,906.56

Available on backorder

Description
Datasheet

Summary

  • 48 to 200V DC Operating Voltage
  • Liquid-cooled
  • First-class quality
  • Ultra efficient
  • Delivery with controller possible

Key Parameters

Rated Voltage:     48-200V DC

Rated Power:    44kW (S1, continuous), 84kW (S2, peak)

Rated Torque:     219Nm (S1, continuous), 435Nm (S2, peak)

Rated Speed:     0-3600RPM

Position Sensor:     Resolver

Length:    331mm

Weight:      68kg

Shaft:      Hollow shaft with two screw flanges

About ENGIRO

ENGIRO are a German manufacturer and technology leader for highly efficient, innovative electric motors and power train solutions. ENGIRO specialise in  proprietary e-drives and have comprehensive expertise in power trains which make them the partner and supplier of choice for system integrators and OEMs in markets which include navy, utility vehicles, industry, automotive applications and aviation. Learn more here

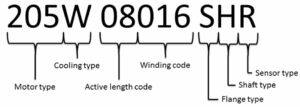

ENGIRO Naming Convention

Additional information
Weight 68 kg
Dimensions 33.1 × 31.5 × 31.5 cm
