REC50B1JA, 500A 1500V DC, 9-36V DC Coil (With Aux)
- REC50B1JA
- 1500V DC
- 500A Continuous Duty
- Hermetically Sealed.
- Internal PWM
- 9-36V DC Coil
179,93 € ex. GST
In stock
Shipping Worldwide
Secure Payment Options
Order Tracking
Download Datasheet
Specification
| Characteristic | Measure |
| Switch Type | SPST Normally Open |
| Contact Voltage | 1500V DC |
| Continuous Current | 500A |
| 1 min Current | 1000A |
| 20 sec Current | 2000A |
| Auxiliary Contact | SPST |
| Coil Voltage | 9-36V DC (internal PWM) |
| Bidirectional | Yes |
Features
- Hermetic seal with gas fill
- Auxillary contacts – for main position feedback
- Integrated coil economiser to reduce coil holding power
- Meets RoHS 2011/65/EU
- CE certified
- IEC60947-5-1 compliant
Rincon Power Isolators & Contactors
We can supply the entire range of Rincon Power products. For non-stocked items minimum order quantities apply.
Contact sales to find out more:
- [email protected]
- +61 4 600 220 89
HVBDÂ SERIES
High Voltage Battery Disconnect
- Drop-in replacement for Gigavac HVB
- 1000V
- 300A, 400A, & 600A continuous duty versions
- Hermetically sealed. Gas Filled. Intrinsically safe
- Auxiliary contacts (optional)
RER02Â SERIES
20A Contactors
- 750V
- Commonly used as Pre-Charge Relay
- Multiple form factors availabe
REC10 SERIES
100A Contactor
- 900V
- Bi-Directional switching (optional)
- Auxiliary contacts (optional)
RXC15Â SERIES
150A+ Contactor
- 900V
- Auxiliary contacts (optional)
- Integrated coil economizer
- Additional form factors coming soon
REC35Â SERIES
350A Contactor
- 900V
- Bi-Directional switching (optional)
- Auxiliary contacts (optional)
- Integrated coil economizer
RXC35 SERIES
350A+ Contactor
- 900V
- Auxiliary contacts (optional)
- Integrated coil economizer
- Additional form factors coming soon
REC50Â SERIES
500A Contactor
- 1500V
- Bi-Directional switching
- Auxiliary contacts
- Integrated coil economizer
| Weight | 1,183 kg |
|---|---|

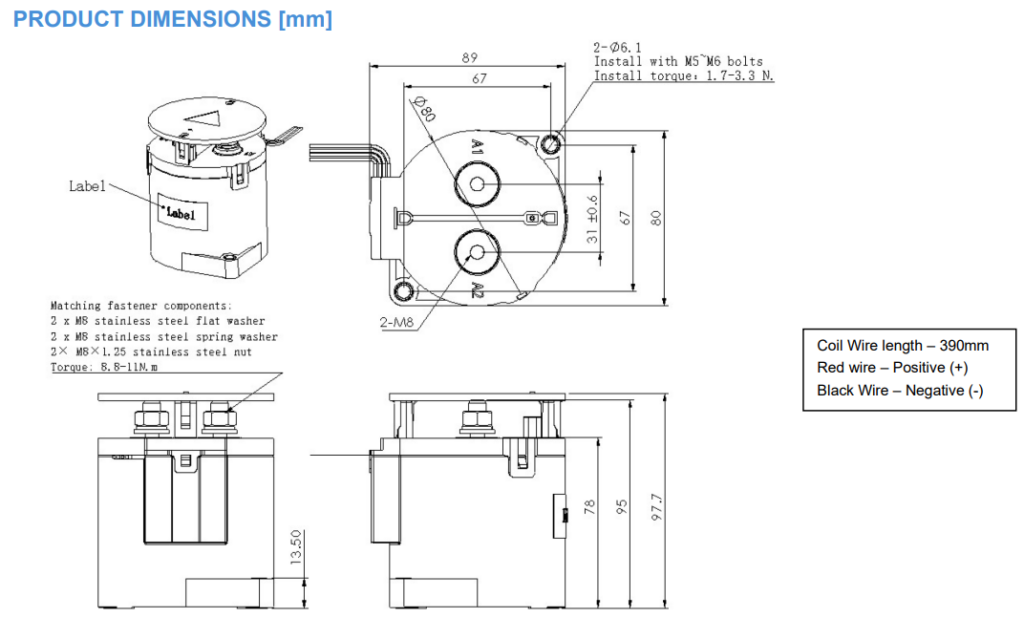

| Dimensions | 9 × 8,5 × 10 cm |
